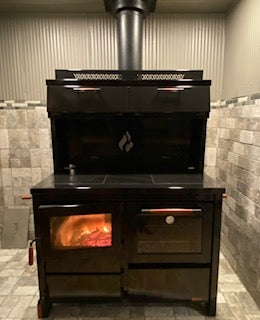

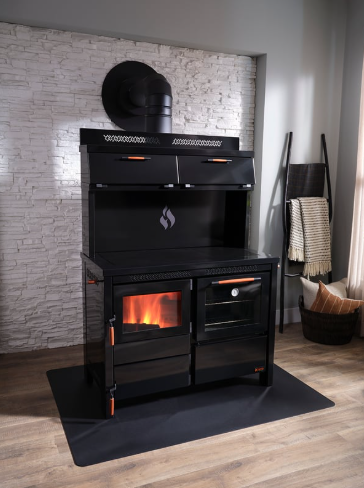

520 Heco Wood & Coal Cook Stove 3-Piece Porcelain Top-In Stock

This model Includes Glass Fire and Oven Doors, a 3-Piece Porcelain Top, Warming Closet, and a Water Reservoir.

🔧 Specifications

• Fuel Type: Wood or anthracite/coal (dual-fuel capability)

• Maximum Output: Up to ~90,000 BTU/hr; heating capacity up to ~2,500 sq ft

• Firebox Dimensions: 19″ D x 16″ W x 17″ H (≈2.99 ft³)

• Oven Dimensions: 21″ D x 18″ W x 13″ H

• Cooking Surface / Top Plate: 46.5″ W x 21″ D (for the 520 model)

• Overall Stove Size (with handles): ~51.5″ W x 33.25″ D

• Flue/Chimney Connection Diameter: 7″ outlet

• Weight: ~840 lb

• Certifications: UL #1482 & CAN/ULC #S627 (for the 520 Series)

🌟 Key Features & Selling Points

Dual-Fuel Efficiency
Designed to burn either wood or anthracite/coal, the HECO 520 gives you flexibility and long-burn capability.

Generous Cooking & Baking Capability
With a large 46.5″ wide cooktop and full-size oven (21″ deep!), this appliance is built for serious culinary use—roasting, baking, sautéing while your home stays warm.

High Heating Capacity
Rated up to 90,000 BTU/hr, the 520 can efficiently heat large spaces — ideal for open-concept living or colder climates.

Amish Craftsmanship & Durable Build
Handbuilt in Lancaster County, PA, this stove uses heavy plate steel body, reinforced cooktop frame, and premium components.

Customization & Accessories

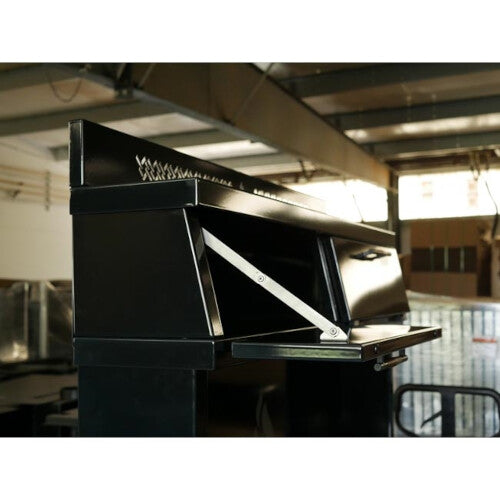

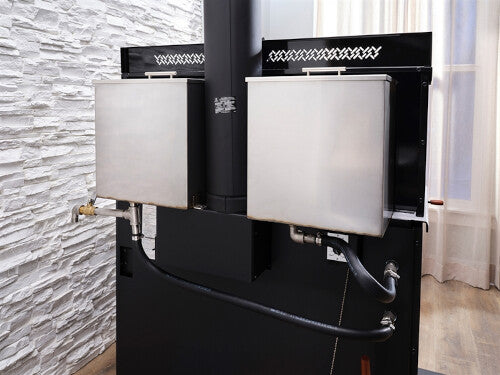

Choose from glass or solid doors, warming shelf or warming closet, a variety of cooktop surface styles, and optional water reservoir or coil for hot water integration.

Large Firebox for Extended Burns
With a full 19″ deep firebox, this stove allows long burn times and larger logs, reducing the amount of refueling needed.

✅ Ideal Use Cases

• Homeowners looking for one appliance that both cooks daily and heats a large space.

• Kitchens where the stove acts as a focal point and must perform at a high level.

• Homes in colder climates or larger scale spaces (up to ~2,500 sq ft) where standard cookstove range performance is insufficient.

• Buyers who appreciate high-end build quality, upgrade options, and flexibility in fuel type.

🛒 Why Buy From Us

• Decades of experience in cookstove selection, sizing, installation support and after-sales backup.

• Clear guidance on chimney/flue installation, clearances, local code compliance, and insurance support.

• Free shipping promotions available (check current deal) and full support via phone: 406-300-1776 or email: sales@woodstoves.net.

• Trusted parts and accessory support for the long-term life of your stove.

Proudly Amish-Built in the USA
Each HECO cookstove is handcrafted with exceptional skill and durability, ensuring long-lasting performance and true American quality.

Installation Note:
When using DuraTech double-wall chimney pipe, there may be interference with the stove’s rear backsplash. This can cause the connector pipe to angle slightly toward the back of the stove. Please verify clearances and connector alignment during installation.

Domestic Hot Water Compatibility:
This model can be integrated into a domestic hot water system. We recommend pairing with a Vaughn Range Boiler for proper setup and reliable performance. Contact our team for system design guidance.
