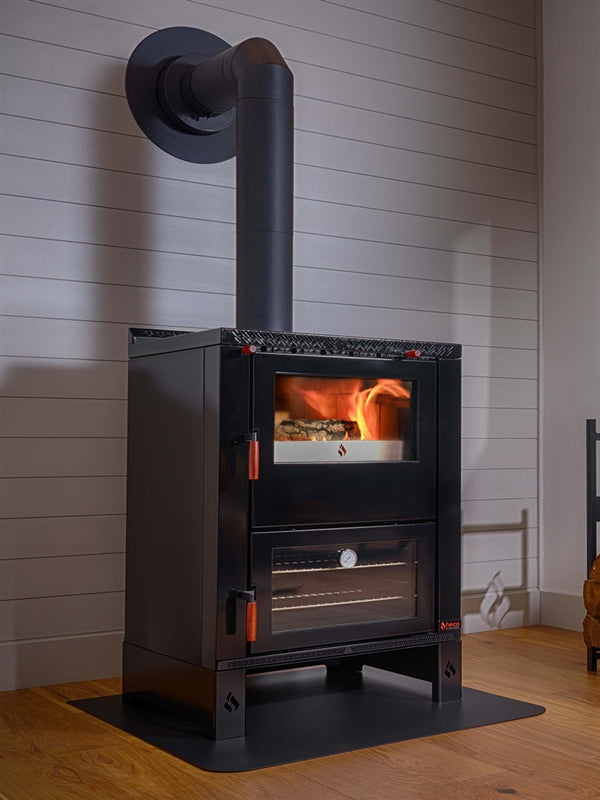

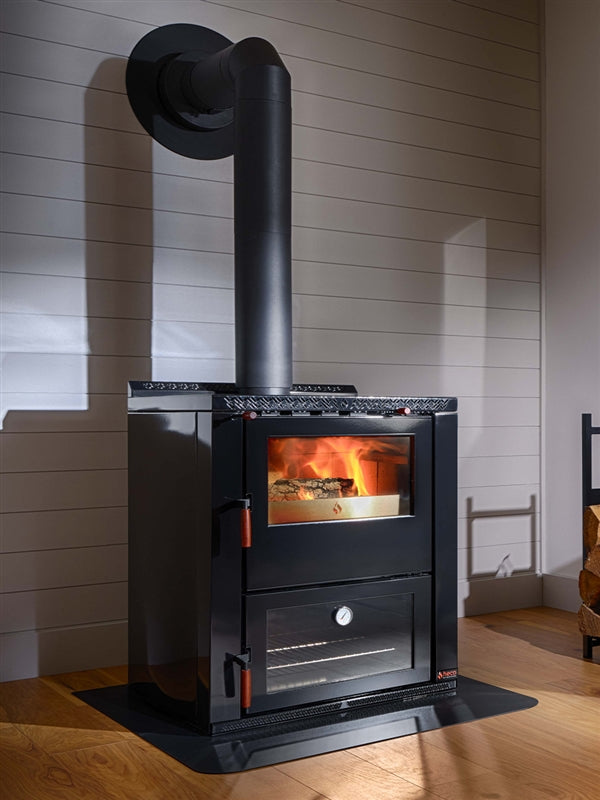

Heco 320W Inline Wood Cookstove 🔥🏡

Seamless Kitchen Integration • Amish Craftsmanship • Powerful Wood-Fired Performance

The Heco 320W Inline Wood Cookstove by DS Stoves is a next-generation cooking appliance designed for homeowners who want true wood-fired performance with modern kitchen integration. Built by Amish craftsmen in Lancaster County, PA, the 320W combines traditional durability with innovative design — allowing it to be installed inline with cabinetry, creating a clean, built-in look rarely seen in wood cookstoves.

With zero-clearance installation capability (when properly configured), a powerful 68,785 BTU output, and a beautifully designed cooking system, the Heco 320W is built to handle everything from daily meal prep to full-home heating support.

📐 Overall Stove Dimensions

Standard Stove

• Height: 36 inches
• Width: 30 inches
• Depth: 27 inches

With Side Cabinets (Inline Installation)

• Height: 36 inches
• Width: 49.875 inches
• Depth: 27 inches

🔥 Firebox Dimensions

• Height: 12 inches
• Width: 19.5 inches
• Depth: 15 inches
• Maximum Log Length: approx. 18–19 inches

Designed for efficient wood burning with consistent heat output and long burn cycles.

🍞 Oven Dimensions

• Height: 10 inches
• Width: 17.75 inches
• Depth: 21 inches

Ideal for:

• Baking breads and pastries
• Roasting meats and vegetables
• Everyday family cooking

The optional glass oven door allows you to monitor baking without heat loss — perfect for delicate recipes.

⚖️ Total Product Weight

• Weight: 640 lbs

Heavy-duty construction ensures long-lasting durability and excellent heat retention.

🔧 Chimney / Flue Specifications

• Flue Size: 6 inches
• Minimum Chimney Height: 20 feet

🧱 Clearances to Combustibles

(UL Listed — Always follow manual and installation requirements)

• Front: 36 inches
• Back (Single Wall Pipe): 16 inches
• Back (Double Wall Pipe): 12 inches
• Back (Rear Wall Protection Kit): Zero Clearance
• Sides: 16 inches
• Sides with Cabinets: Zero Clearance
• Corner: 8 inches
• Ceiling: 36 inches
• Single Wall Pipe Clearance: 18 inches
• Double Wall Pipe Clearance: 6 inches

🍳 Cooking Surface

• Stovetop Size: 30" W × 25.5" D

Perfect for:

• Searing, sautéing, and boiling
• Multi-pot cooking
• Large family meal preparation

🌡️ Heating Performance

• Heating Capacity: up to 1,400 sq. ft.
• Max Heat Output: 68,785 BTUs
• Efficiency: 71%

Designed as a supplemental heat source with strong output for kitchens and open living areas.

🛠️ Construction & Design

• Porcelain enamel coated exterior for durability and easy cleaning ✨
• Heavy-duty Amish-built construction 🇺🇸
• Reburn baffle system for improved efficiency and cleaner burn
• Adjustable leveling legs
• Built for long-term daily use

🔥 Premium Features

• Infrared reflective glass fire door (reflects heat back into firebox, keeping you cooler while cooking)
• Large fire viewing area 🔥
• Optional glass oven door
• Front ash cleanout system
• Spacious cooktop and oven layout
• Reburn system for improved efficiency and lower emissions

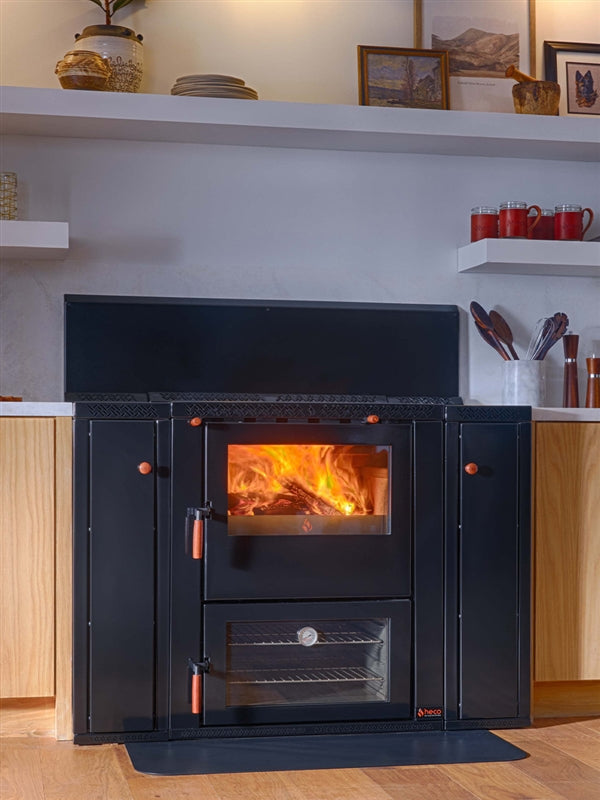

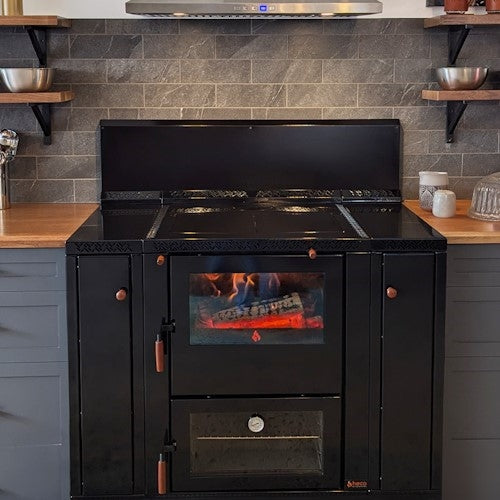

🏡 Inline & Zero-Clearance Installation

The Inline Series is designed for true kitchen integration:

✔ Install flush with cabinetry
✔ Use side cabinets for storage or water reservoirs
✔ Achieve zero-clearance installation when using required components

⚠️ Required for Inline Installation:

• Porcelain Side Cabinets
• Rear Wall Protection Kit
• Type 2 Thermal Floor Protection

💧 Optional Water Heating Capability

• Side cabinets can house two 10-gallon water reservoirs
• Total capacity: 20 gallons
• Heated via radiant stove output

⭐ Why Choose the Heco 320W Inline?

✔ Seamless built-in kitchen integration
✔ Zero-clearance capability (with proper setup)
✔ Amish-built quality
✔ Powerful 68,785 BTU output
✔ Infrared glass keeps cooking area cooler
✔ Large cooktop + oven capacity
✔ Limited Lifetime Warranty

📄 Resources & Documentation

• Owner’s Manual (PDF)
  Installation, clearances, operation, and maintenance
  🔗 https://www.discountstoves.net/v/vspfiles/downloadables/Heco/320W/Heco-320W-Wood-Cookstove-Manual.pdf

🔍 Installation Notes

• Zero-clearance installs require SuperPro Class A chimney pipe
• Must use required protective panels for inline installations
• Professional installation strongly recommended
• IR glass should not be cleaned with liquids

🚚 Delivery Information

• Qualifies for FREE residential delivery (lower 48 states)
• Lift gate service included
• Large freight truck delivery (call for smaller truck options)
