HECO 420 Wood & Coal Cookstove – Solid Top, Glass Doors & Warming Closet 🔥🍞🇺🇸

Amish Craftsmanship Meets Modern Wood-Fired Living

The HECO 420 Wood & Coal Cookstove is one of the most versatile and capable cookstoves built in North America today. Handcrafted by the Amish at DS Manufacturing in Lancaster County, Pennsylvania, the HECO 420 combines traditional wood-fired cooking with modern engineering, exceptional heating performance, and practical everyday functionality.

This configuration includes some of the most sought-after HECO upgrades:

✅ Solid 1/4" Steel Cooktop
✅ Glass Firebox Door
✅ Glass Oven Door
✅ Full Warming Closet

Built to burn either seasoned firewood or anthracite coal, the HECO 420 delivers up to 60,000 BTUs of heat output, long burn times, exceptional baking performance, and beautiful flame viewing through the large glass firebox door.

Whether you're heating your home, baking bread, cooking family meals, or preparing for self-reliant living, the HECO 420 is built to perform for decades.

---

Why Choose the HECO 420?

The HECO 420 is more than a cookstove—it's a complete home heating and cooking system. Unlike many decorative cookstoves, the HECO features a large airtight firebox, automatic thermostat control, easy-clean oven system, and secondary combustion technology.

Its front oven cleanout design makes maintenance easier than many competing cookstoves and allows installation in tighter spaces where rear access may be limited.

---

Key Features

• Burns Wood or Anthracite Coal

• Amish Built in Lancaster County, Pennsylvania

• Solid 1/4" Steel Cooktop

• Glass Firebox Door

• Glass Oven Door

• Full Warming Closet

• Automatic Thermostatic Draft Control

• Air Wash System

• Secondary Combustion System

• Large Airtight Firebox

• Porcelain Enamel Oven Interior

• Removable Oven Tray

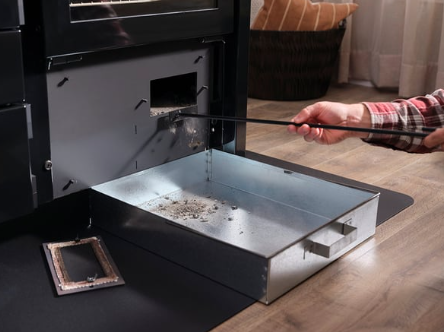

• Front Oven Cleanout

• Rear Sidewall Fly Ash Cleanout

• Rear Chimney Cleanout

• Stainless Protective Cooktop Rails

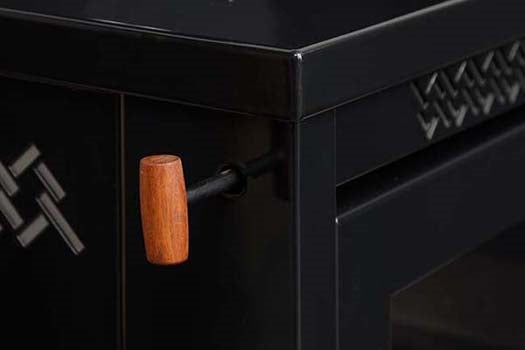

• External Coal Shaker Handle

• EPA Exempt

• Washington State Approved

• Limited Lifetime Warranty

---

📐 Overall Dimensions

Specification	Measurement
Width	47.25"
Depth	33.5"
Height	35.25"
Height to Top of Warming Closet	55.5"

---

♨️ Warming Closet Dimensions

Specification	Measurement
Warming Closet Shelf	37" W x 7" D
Stove Top to Bottom of Warming Closet	17"

Perfect for:

• Keeping meals warm

• Proofing bread dough

• Drying gloves and clothing

• Warming serving dishes

• Slow cooking

The warming closet adds both practicality and classic cookstove styling.

---

🍳 Cooking Surface

Specification	Measurement
Cooktop Surface	42.25" W x 21" D

Solid Top Advantages

The solid steel cooktop provides:

• Excellent heat retention

• Consistent cooking temperatures

• Large uninterrupted cooking area

• Exceptional durability

• Traditional wood-fired cooking experience

---

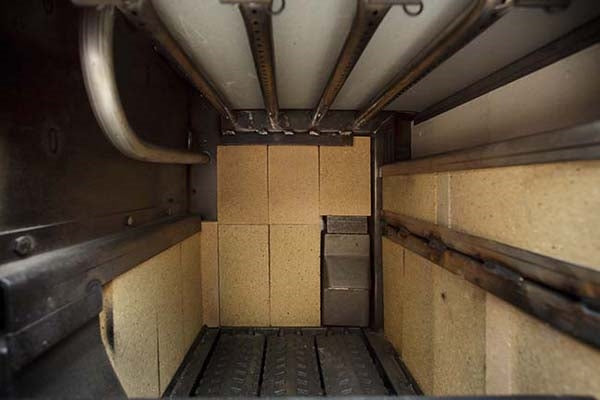

🔥 Firebox Specifications

Specification	Measurement
Firebox Dimensions	19" L x 12" W x 17" H
Firebox Volume	2.24 cu. ft.

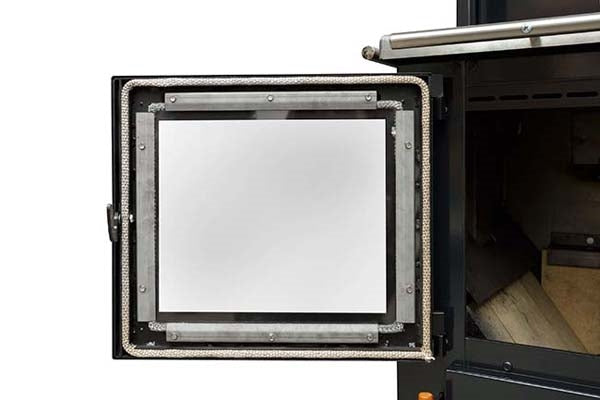

Firebox Door	12" W x 9.5" H
Firebox Viewing Area	14-3/4" W x 8-3/4" H
Maximum Log Length	18"

Firebox Features

• Airtight construction

• Secondary combustion system

• High-efficiency reburn air tubes

• Automatic thermostat damper control

• External shaker handle for coal use

The large firebox provides long burn times and excellent heating performance.

---

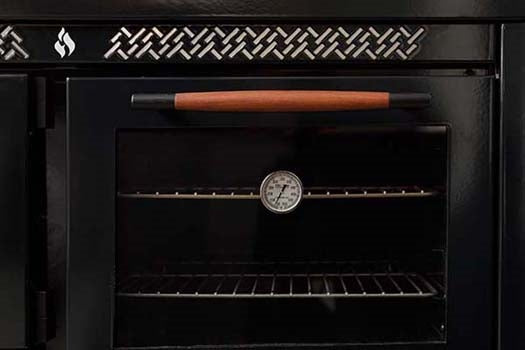

🍞 Oven Specifications

Specification	Measurement
Oven Width	18"
Oven Height	13"
Oven Depth	21"
Oven Capacity	2.84 cu. ft.
Oven Viewing Area	16" W x 10-3/4" H

Oven Features

• Glass viewing door

• Porcelain enamel interior

• Built-in oven thermometer

• Removable oven tray

• Fully removable oven assembly

The large baking oven is ideal for breads, pizzas, casseroles, cookies, and family-sized meals.

---

🌡️ Heating Performance

Specification	Rating
Heat Output	Up to 60,000 BTU/hr
Heating Capacity	700 – 2,000 sq. ft.
Burn Time	8 – 12 Hours

The HECO 420 is designed to provide reliable overnight burns while maintaining excellent cooking performance.

---

⚖️ Weight

• 775 lbs.

The substantial weight reflects the stove's heavy-duty construction and long-term durability.

---

🔧 Chimney Requirements

Specification	Requirement
Flue Size	6" Round
Minimum Chimney Height	20'

Proper chimney height is essential for optimal draft and performance.

---

💧 Optional Domestic Hot Water Accessories

The HECO 420 can be upgraded with:

22-Gallon Stainless Steel Water Reservoir

• Mounted alongside the cookstove

• Excellent for domestic hot water production

Stainless Steel Water Coil

• Designed for domestic hot water applications

Reservoir Coil Kit

• Compatible with the optional reservoir system

Many customers pair HECO cookstoves with a Vaughn Range Boiler system for larger hot water storage needs.

---

📏 Clearances to Combustibles

Location	Clearance
Left Side	18"
Right Side	12"
Rear	18"
Rear with Heat Shield	12"
Corner	10"
Front	48"
Ceiling	36"
Chimney Connector to Wall	18"

---

🔲 Hearth Pad Requirements

Minimum Hearth Size

• 58" W x 48" D

Protection Requirements

Use a code-approved Type 1 non-combustible floor board when installing on combustible flooring.

Protection must extend:

• 16" in front

• 8" on each side

• Beneath and behind chimney connector

---

⭐ Why Customers Love the HECO 420

✅ Burns wood or anthracite coal
✅ Large 2.84 cu. ft. oven
✅ Included warming closet
✅ Glass firebox door
✅ Glass oven door
✅ Large solid steel cooktop
✅ Long 8–12 hour burn times
✅ Optional hot water production
✅ Amish handcrafted in the USA 🇺🇸
✅ Limited Lifetime Warranty

---

📄 Resources

Owner's Manual

https://storage.googleapis.com/production-constantcontact-v1-0-5/195/926195/awIamtTR/e372c594e431424098449669459b3928?fileName=DS_Heco_Elite_Series_Owners_Manual.pdf

Product Video

https://youtu.be/DrnWN2sQ1jQ?si=SU-wWaiTXVCEXut5

---

Why Buy the HECO 420?

The HECO 420 offers the perfect balance of traditional cookstove functionality and modern engineering. With its large oven, expansive solid cooktop, warming closet, long burn times, and ability to burn either wood or coal, it remains one of the most capable Amish-built cookstoves available in North America today.
