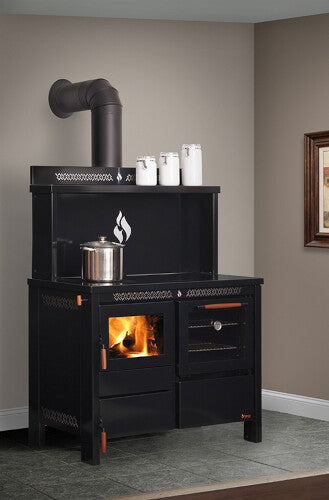

HECO 420 Wood & Coal Cookstove with Glass Oven Door, Glass Firebox Door, Warming Closet & Porcelain Enamel Cooktop 🔥🇺🇸

Amish Craftsmanship Meets Modern Wood-Fired Cooking

The HECO 420 Wood & Coal Cookstove represents the next generation of North American cookstoves. Handcrafted by the Amish at DS Manufacturing in Lancaster County, Pennsylvania, the HECO 420 combines traditional wood-fired cooking with modern engineering, exceptional heating performance, and beautiful finishes.

This particular configuration includes the most popular upgrades already built into the stove:

✅ Glass Firebox Door
✅ Glass Oven Door
✅ Full Warming Closet
✅ Three-Piece Porcelain Enamel Cooktop

Designed to burn either seasoned firewood or anthracite coal, the HECO 420 provides up to 60,000 BTUs of heating power while delivering exceptional baking, cooking, and long burn times. Whether you're heating your home, baking fresh bread, cooking family meals, or preparing for off-grid living, the HECO 420 is built to perform.

🔥 Why Choose the HECO 420?

The HECO 420 was developed specifically for homeowners who want a true cookstove that also functions as a powerful heater. Unlike many decorative cookstoves, the HECO is built with large fireboxes, airtight construction, thermostatic draft controls, and easy-access cleaning systems.

Obadiah's has worked directly with DS Manufacturing to help develop many of the features incorporated into today's HECO lineup, resulting in one of the most refined cookstoves available in North America.

📐 Overall Dimensions

• Length: 47.25"
• Depth: 33.5"
• Height: 35.25"

Height to Top of Warming Closet

• 55.5"

Height from Cooktop to Bottom of Warming Closet

• 17"

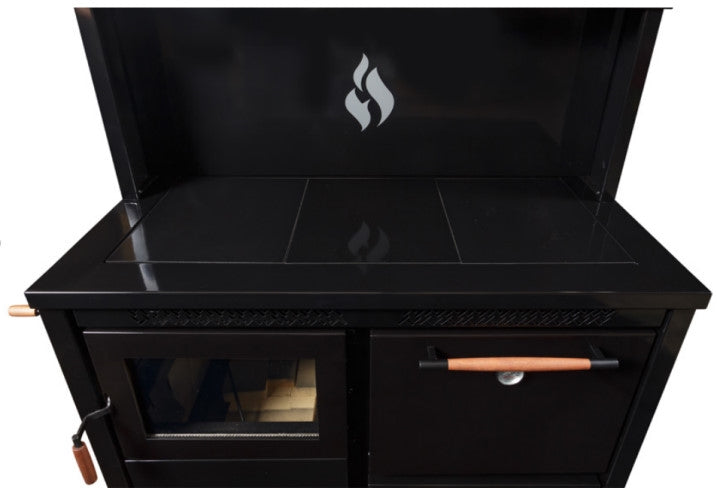

🍳 Cooking Surface

Cooktop Dimensions

• 42.25" W x 21" D

Features

• Three-piece removable porcelain enamel cooktop
• Easy-to-clean surface
• Excellent heat transfer
• Multiple cooking zones
• Stainless protective rails surrounding cooktop

The porcelain enamel cooktop offers superior cleanup compared to traditional steel tops while maintaining outstanding cooking performance.

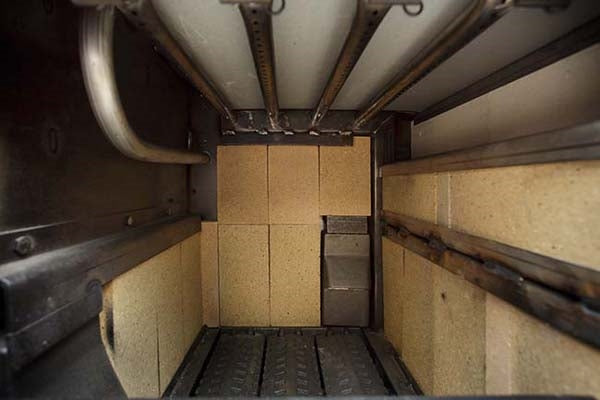

🔥 Firebox Dimensions

Firebox Size

• 19" L x 12" W x 17" H
• 2.24 Cubic Feet

Firebox Door

• 12" W x 9.5" H

Firebox Viewing Area

• 14 ¾" W x 8 ¾" H

Maximum Log Length

• 18 Inches

Fuel Options

• Seasoned Firewood
• Anthracite Coal

Firebox Features

• Large easy-loading design
• Airtight construction

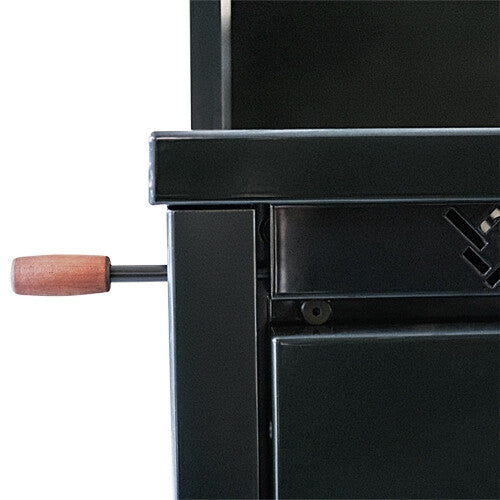

• External shaker handle for coal burning
• Secondary combustion system
• Reburn air tubes
• Automatic thermostatic draft control

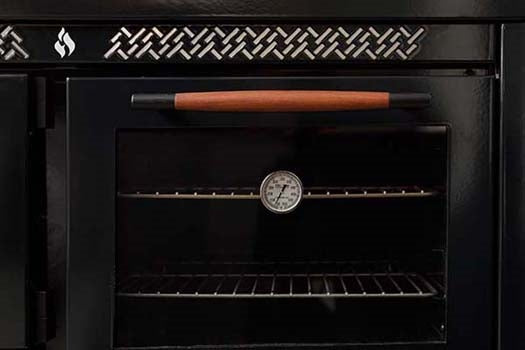

🍞 Oven Dimensions

Interior Oven Dimensions

• 21" D x 18" W x 13" H

Oven Capacity

• 2.84 Cubic Feet

Oven Viewing Area

• 16" W x 10 ¾" H

Oven Features

• Glass oven door
• Food-grade porcelain enamel lining
• Removable oven tray
• Fully removable oven assembly
• Integrated oven thermometer

The large oven provides excellent capacity for baking breads, pizzas, casseroles, cookies, and roasting meats.

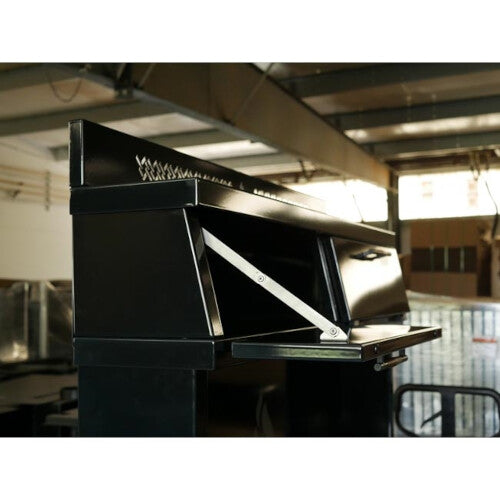

♨️ Warming Closet

Warming Shelf Dimensions

• 37" W x 7" D

The integrated warming closet provides valuable additional cooking space for:

• Keeping meals warm
• Proofing bread dough
• Warming plates
• Drying gloves and clothing
• Slow cooking applications

The warming closet adds both functionality and classic cookstove styling.

⚖️ Total Weight

• 775 lbs

The HECO's substantial weight reflects its heavy-duty construction and long-lasting durability.

🌡️ Heating Performance

Maximum Heat Output

• 60,000 BTU/hr

Heating Capacity

• 700 – 2,000 Square Feet

Burn Time

• 8–12 Hours

The large firebox and airtight construction provide excellent overnight burn capability.

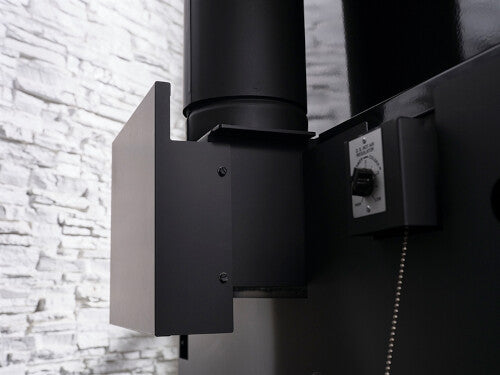

🔧 Chimney Specifications

Flue Outlet

• 6" Round

Minimum Chimney Height

• 20 Feet

Proper chimney height is critical for optimal draft and performance.

💧 Optional Domestic Hot Water Capability

The HECO 420 can be equipped with:

Optional Accessories

• 22 Gallon Stainless Steel Water Reservoir
• Stainless Steel Water Coil

These accessories allow integration with domestic hot water systems.

For larger domestic hot water applications, many customers pair HECO cookstoves with a Vaughn Range Boiler system.

🛠️ Premium Features

Included Standard Features

• Glass Firebox Door
• Glass Oven Door
• Full Warming Closet
• Porcelain Enamel Cooktop
• Automatic Thermostat Draft Control
• Air Wash System
• External Shaker Handle

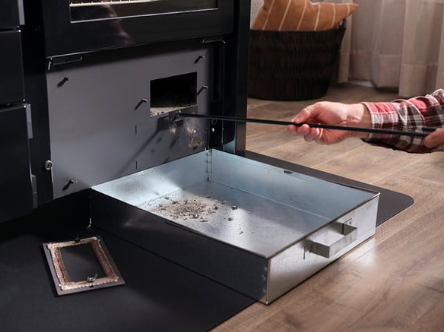

• Easy Access Ash Pan
• Front Oven Cleanout
• Rear Sidewall Cleanout
• Rear Chimney Cleanout
• Secondary Combustion System
• Stainless Protective Rails

🧹 Easy Maintenance Design

Unlike many traditional cookstoves, the HECO 420 features:

Three Cleanout Access Points

1. Front Oven Cleanout
2. Rear Sidewall Fly Ash Cleanout
3. Rear Chimney Cleanout

This greatly simplifies routine maintenance and improves long-term performance.

🏆 Certifications & Approvals

• UL 1482 Listed
• CAN/ULC S627 Listed
• Washington State Approved
• EPA Exempt
• Made in USA 🇺🇸

🧱 Clearances to Combustibles

Location	Clearance
Left Side	18"
Right Side	12"
Rear	18"
Rear with Heat Shield	12"
Corner	10"
Front	48"
Ceiling	36"
Chimney Connector to Wall	18"

🔲 Hearth Pad Requirements

Type 1 Floor Protection Required

Minimum Hearth Pad Size:

• 58" W x 48" D

Floor protection must extend:

• 16" in front
• 8" on each side
• Beneath and behind chimney connector

⭐ Why Customers Love the HECO 420

✅ Amish handcrafted in Pennsylvania
✅ Burns wood or anthracite coal
✅ Large 2.84 cu. ft. baking oven
✅ Included warming closet
✅ Included glass firebox door
✅ Included glass oven door
✅ Porcelain enamel cooktop
✅ Long 8–12 hour burn times
✅ Domestic hot water options available
✅ Limited Lifetime Warranty

📄 Resources & Documentation

Owner's Manual

https://storage.googleapis.com/production-constantcontact-v1-0-5/195/926195/awIamtTR/e372c594e431424098449669459b3928?fileName=DS_Heco_Elite_Series_Owners_Manual.pdf

🛡️ Warranty

• Limited Lifetime Warranty

🚚 Shipping Information

-Item may take 2-4 weeks to ship depending on availability.

The HECO 420 ships via freight carrier and is professionally crated to ensure safe delivery.

For homeowners seeking a premium Amish-built cookstove capable of heating, baking, cooking, and even supporting domestic hot water production, the HECO 420 remains one of the finest cookstoves built in North America today.
