J.A. Roby Cuistot Wood Cookstove – Metallic Black 🔥✨

Timeless European Design • EPA Certified Performance • Premium Wood-Fired Cooking

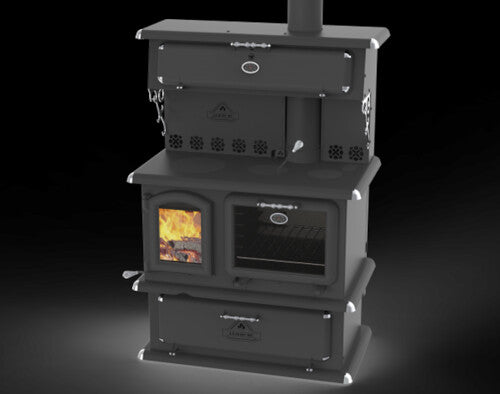

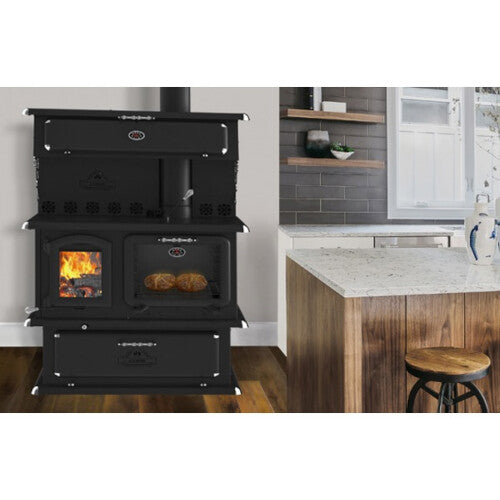

The J.A. Roby Cuistot Wood Cookstove blends the elegance of old-world European design with modern efficiency and performance. Inspired by classic styling, the Cuistot features a striking backsplash with Danish Rosette accents, chrome detailing, and a rugged pedestal base — creating a stove that is as beautiful as it is functional.

Built with a combination of heavy-duty steel and cast iron, the Cuistot is designed for homeowners who want a true wood-fired cooking experience paired with reliable heating performance. With its large oven, integrated food warmer, and 70,000 BTU output, this stove is perfectly suited for everyday cooking and whole-home comfort.

📐 Overall Dimensions

• Width: 41 ⅝ inches
• Height: 58 ½ inches (to top of warming oven)
• Depth: 26 ¼ inches
• Cooktop Height: 35 ½ inches

🔥 Firebox Dimensions

• Width: 12 inches
• Height: 11 ⅝ inches
• Depth: 20 inches
• Firebox Volume: 1.7 cu. ft.
• Maximum Log Length: 17 inches

The firebox is lined with refractory bricks for improved heat retention and even combustion.

🍞 Oven Dimensions

• Width: 17 ½ inches
• Height: 12 ½ inches
• Depth: 18 ¾ inches
• Volume: 2.39 cu. ft.

Perfect for:

• Baking bread and pastries
• Roasting meats
• Full-size family meals

Includes a glass oven door and built-in thermometer for precise cooking.

♨️ Food Warmer Dimensions

• Width: 39 ⅞ inches
• Height: 10 ¼ inches
• Depth: 16 ¼ inches
• Height from Cooktop to Bottom of Warmer:
  • 12 ½ inches (with cook plates)
  • 13 inches (without cook plates)

Ideal for keeping dishes warm, proofing dough, or slow heating.

⚖️ Total Product Weight

• Weight: 532 lbs

Heavy-duty construction ensures durability and excellent heat retention.

🔧 Chimney / Flue Specifications

• Flue Size: 6 inches
• Minimum Chimney Height: 12 feet
• Chimney Type: 2100°F Solid Fuel Class A

🧱 Clearances to Combustibles

(UL / ULC Certified — Always verify with local code)

• Rear: 2 ¼ inches
• Sides: 10 inches
• Corners: 8 inches
• Ceiling: 84 inches

Low-clearance design allows flexible installation in tighter spaces.

🍳 Cooking Surface

• Three removable cooktop covers
• Optional enameled cast iron cook plates available
• Large surface for multi-pot cooking

Perfect for:

• Boiling, frying, simmering
• Canning and large batch cooking
• Everyday meal preparation

🌡️ Heating Performance

• Recommended Heating Area: 1,000 – 2,000 sq. ft.
• Maximum Output: 70,000 BTU/h
• Efficiency: 64.5%
• Burn Time: 3–6 hours

🔥 Combustion & Efficiency Features

• EPA 2020 Certified (low emissions: 1.9 g/h)
• Stainless steel secondary air system
• Ceramic fiber baffle
• Air wash system for clean glass
• Outdoor air intake capability

🛠️ Construction & Design

• Heavy-duty steel and cast iron construction
• Metallic black finish with chrome accents ✨
• Arched cast iron firebox door for flame viewing 🔥
• Glass oven door + dual thermometers
• Easy-access ash drawer

⭐ Why Choose the Cuistot?

✔ Elegant European-inspired design
✔ EPA-certified clean burning
✔ Large oven + full-width food warmer
✔ Low clearance installation
✔ Mobile home approved
✔ Built for everyday cooking and heating

📄 Resources & Documentation

• Owner’s Manual (PDF)
  Installation, operation, and safety guidelines
  🔗 https://www.discountstoves.net/v/vspfiles/downloadables/ja-roby/JA-Roby-Chief-Elda-Cuistot-Wood-Cookstove-Manual-3-18-2022.pdf

🔍 Installation Notes

• Requires non-combustible floor protection (UL 1618 compliant)
• Floor protection minimum: 57 5/8" W × 51" D × 3/8" thick
• Must follow NFPA 211 or CAN/CSA-B365 for reduced clearances
• Horizontal venting requires extended floor protection

⚠️ Important Notes

• Cooking plates sold as-is (cosmetic imperfections possible)
• Floor protection must extend beyond stove and chimney connector
• Always follow local building codes and manufacturer guidelines
